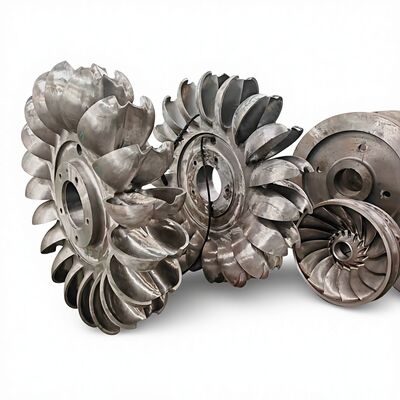

Stainless Steel 0Cr13Ni4Mo Nozzle Ring Pelton Hydro Turbine with 90% Efficiency and 1-200 MW Power Capacity
Productdetails:
| Merknaam: | Wawushan |
| Certificering: | ISO9001 |
| Modelnummer: | CJA-202509 |
Betalen & Verzenden Algemene voorwaarden:
| Minimum Order Quantity: | 1 |
|---|---|
| Prijs: | 50000 |
| Verpakking Details: | Standaard |
| Delivery Time: | 6 Months |
| Payment Terms: | L/C |
| Supply Ability: | 100 Set Per Unit |
|
Gedetailleerde informatie |
|||
| Loper type: | Enig of multi-Straal | Emmerontwerp: | Dubbele kop of gespleten emmer |
|---|---|---|---|
| Nominale snelheid: | 750r/min | Efficiëntie: | Tot 90% of hoger |
| Productnaam: | Pelton Hydroturbine | Ringen met spuitstukken: | Roestvrij staal 0Cr13Ni4Mo (CA6NM) |
| Stroomsnelheid: | 1-200 M3/s | Spuitmondnummer: | Dubbele Pijpen |
| Markeren: | Stainless Steel 0Cr13Ni4Mo Nozzle Ring Pelton Hydro Turbine,90% Efficiency Hydro Jet Turbine,1-200 MW Power Capacity Pelton Water Wheel |
||
Productomschrijving
Stainless Steel 0Cr13Ni4Mo Nozzle Ring Pelton Hydro Turbine
Designed for hydroelectric power production systems, this high-efficiency turbine harnesses the energy of high-pressure water jets for sustainable energy generation.
Product Overview
The Pelton Hydro Turbine is a robust solution engineered for high-pressure water flow environments, with power capacity ranging from 1 MW to 200 MW. Suitable for various hydroelectric projects, from small-scale installations to large power plants, this turbine efficiently converts kinetic energy into mechanical energy through the proven Pelton Water Wheel design.
Key Features
- Nozzle ring manufactured from high-grade stainless steel 0Cr13Ni4Mo (CA6NM)
- Rated speed: 750 r/min for optimal performance
- Suitable for water head ranging from 100m to 800m
- Impulse turbine type for efficient energy conversion
- Power capacity: 1 MW to 200 MW
- Pelton Water Wheel design for effective water flow management
- Hydro jet turbine mechanism for high kinetic energy utilization
- High-efficiency operation up to 90% or greater
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Capacity | 1-200 MW |
| Flow Rate | 1-200 m³/s |
| Rated Speed | 750 r/min |
| Nozzle Ring Material | Stainless Steel 0Cr13Ni4Mo (CA6NM) |
| Design Head | 200m-600m |
| Bucket Design | Double Cup or Split Bucket |
| Noise Level | Low |
| Efficiency | Up to 90% or higher |
| Runner Type | Single or Multi-Jet |
| Head Range | 50-1000 m |
Applications
The Wawushan Pelton Hydro Turbine (Model CJA-2025) is ideal for high-head, low-flow conditions in mountainous regions. ISO9001 certified and manufactured in China, this turbine delivers exceptional performance in challenging water resource environments and complements systems using axial-flow turbines.
Customization Options
Our Pelton Hydro Turbine offers flexible customization to meet specific project requirements. With design heads from 200m to 600m and operational heads from 50 to 1000 meters, we can tailor specifications to your unique needs.
Model: CJA-2025
Minimum Order: 1 set
Price: $50,000 per unit
Delivery Time: 6 months
Supply Capacity: 100 sets per unit
Payment Terms: L/C
Technical Support & Services
Our dedicated technical support team provides comprehensive installation guidance, routine maintenance services, and troubleshooting assistance. We offer system design optimization, component upgrades, retrofit solutions, and comprehensive training programs for operational staff to ensure optimal performance and longevity of your Pelton Hydro Turbine.
